Scissor lifts and platform lifts
The size and load capacity of the scissor lift can be adapted to meet your specific requirements.
For low travel heights and/or when space is limited due to structural conditions, WEIGL's hydraulically operated scissor lifts are the first choice and the logical alternative to other types of goods lifts. Designed exclusively for transporting goods, loads of up to 20,000 kg (or more in the case of custom-made products) can be transported effortlessly.
Hydraulic scissor lifts and platform lifts
DESIGN STYLES

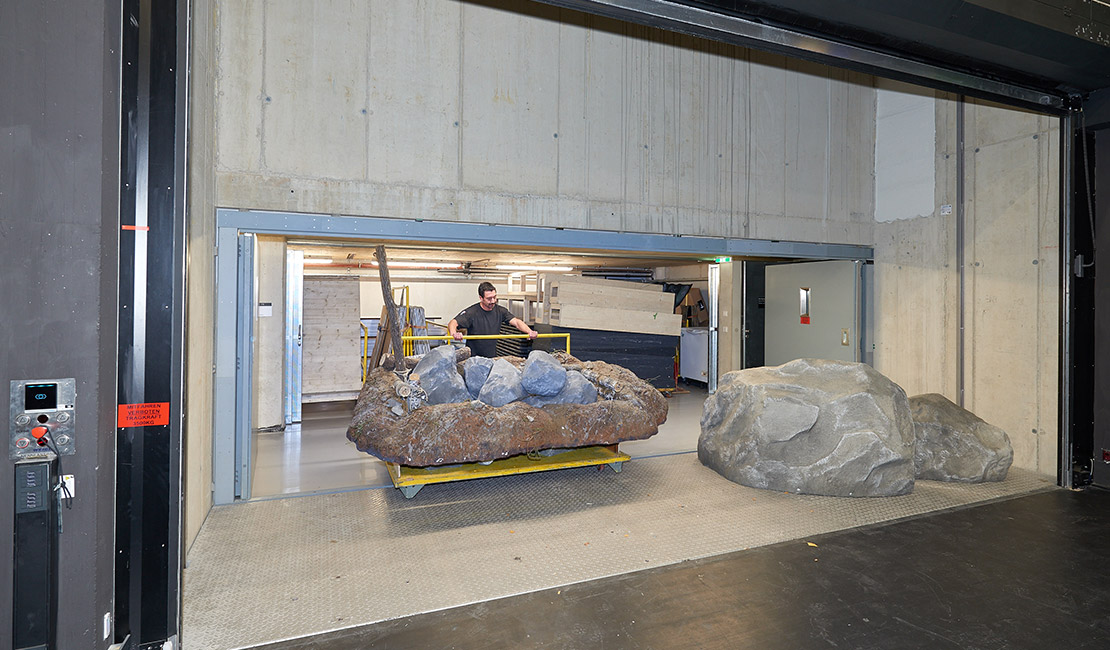

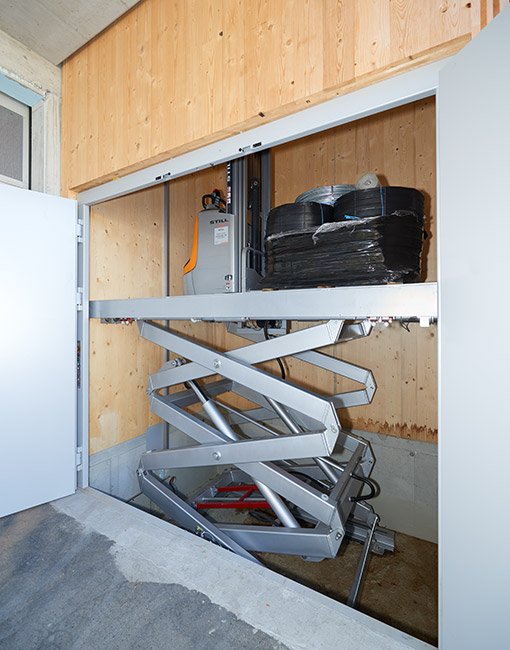

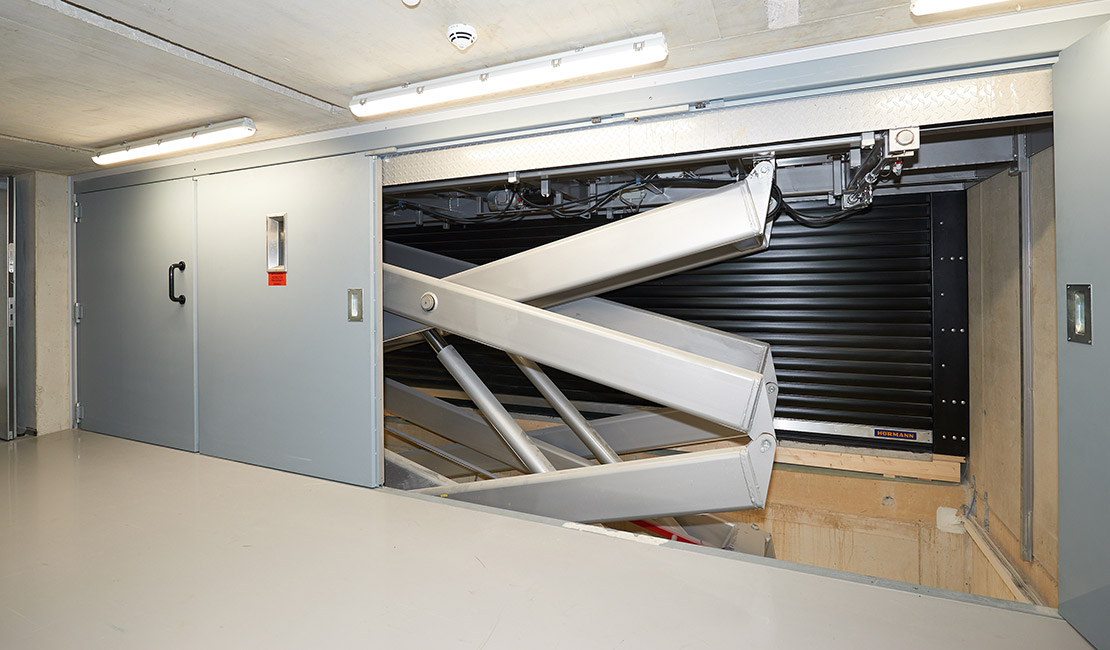

- In an enclosed lift well

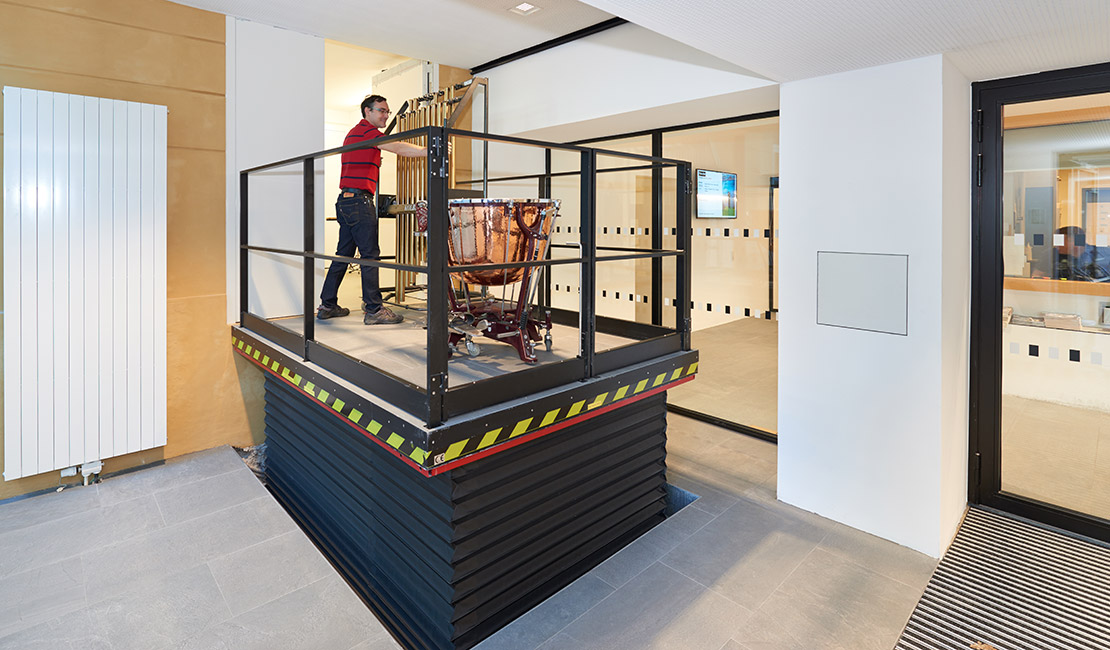

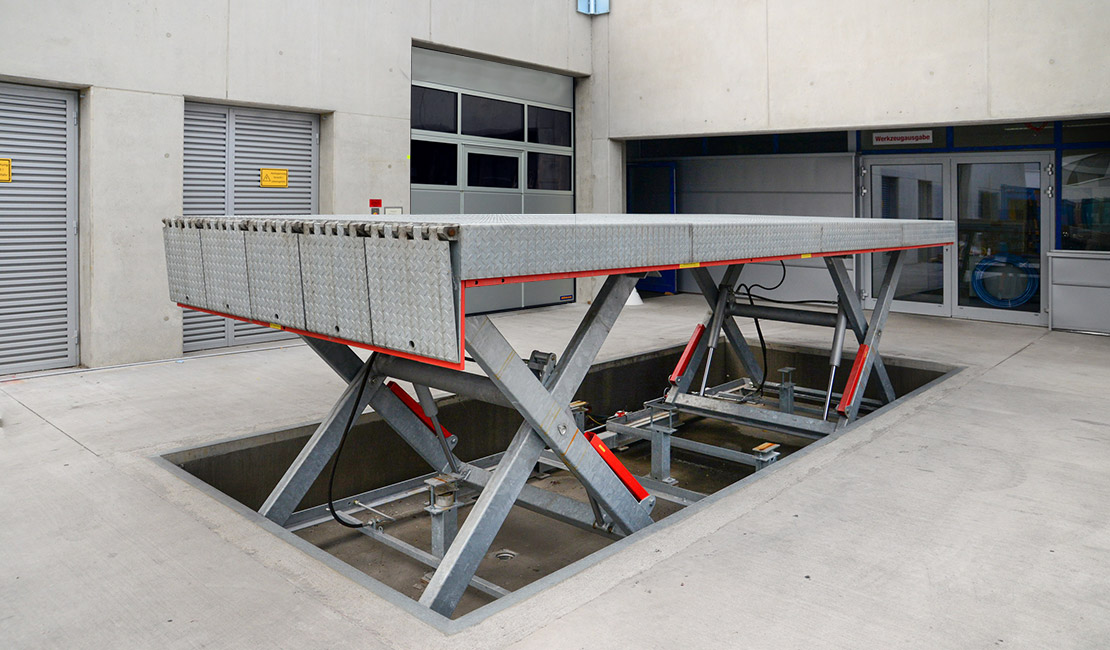

- Ramp platforms (can be driven over as an option)

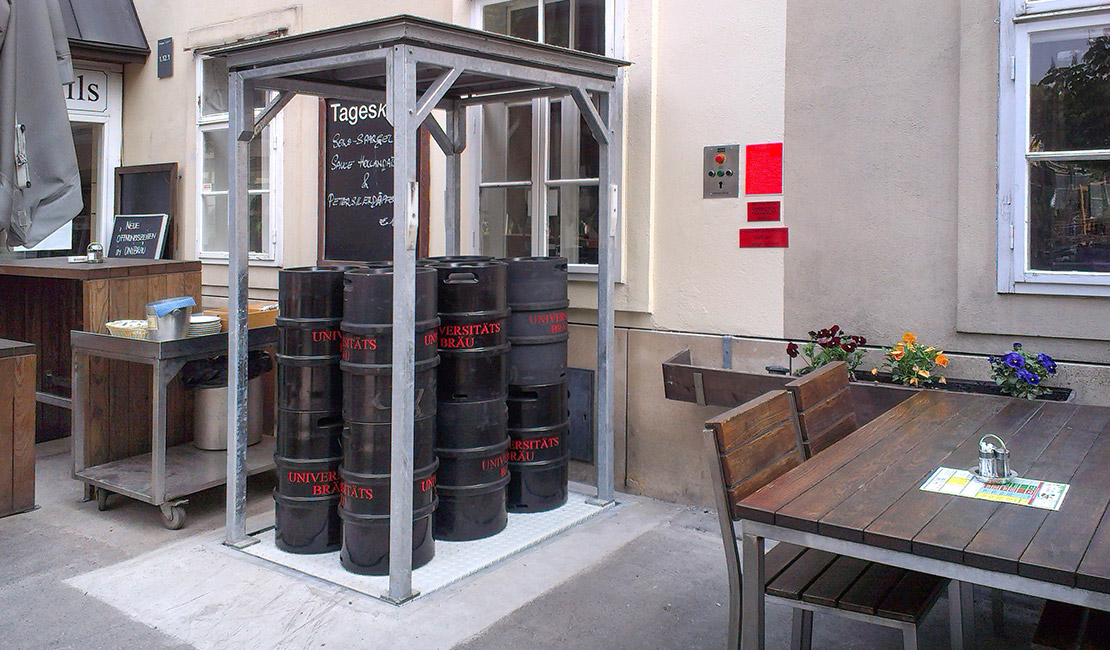

- Under a canopy
TECHNICAL DATA
- Travel height up to 6000 mm
- Load capacity up to 20,000 kg
- Platform size up to approx. 7000 x 3500 mm
- Supply voltage 400 V, 50 Hz
- Location of power unit inside or outside the platform lift structure
More design details
Control system for enclosed well version
Push-button on each floor to call/send
Platform floor
- Plain plate
- Checker plate available as an option
- available in any RAL colour
- galvanised platform floor and base frame as an option
Load type
- Balanced load
- Load placement system on upper floors

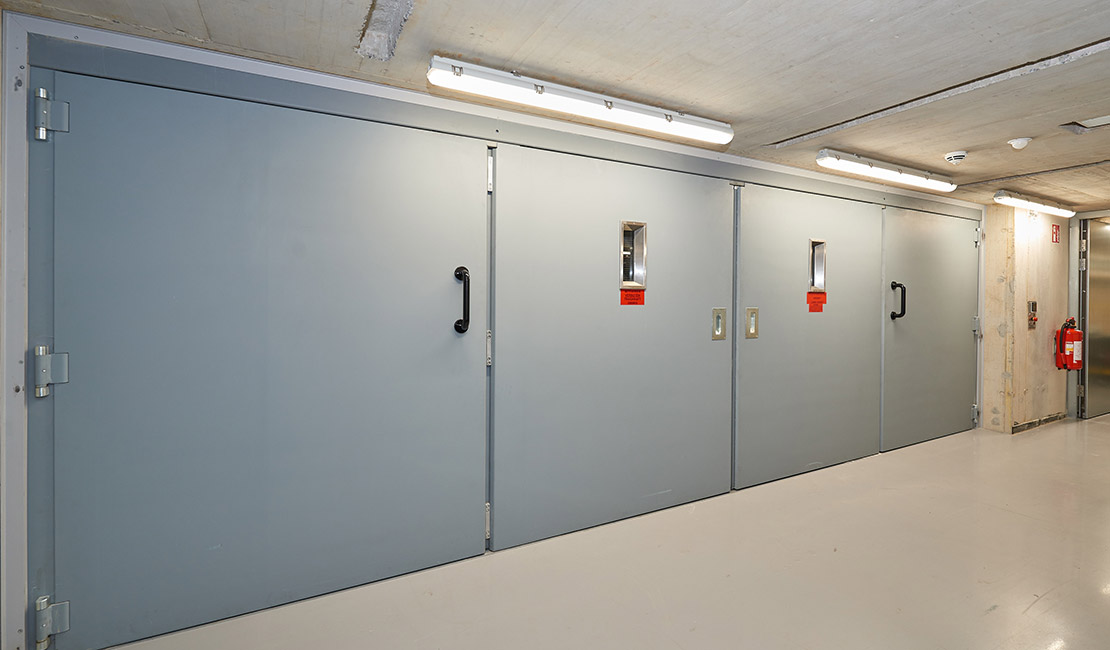

Lift well doors
Single or double hinged doors with inspection opening including door contact and interlock,
or 3 or 4 hinged doors, roller doors or sectional doors
Safety systems
- Maintenance support
- Lifting eyes
- Hydraulic pipe leak protection
- Pressure relief valve
