Wheelchair lift
LIFTBOY wheelchair lift

The LIFTBOY is a flexible wheelchair lift that can be set up anywhere without the need for construction work. It enables wheelchair users to overcome height differences of up to 130 cm.

LIFTBOY

This cost effective wheelchair lift can be used indoors and outdoors.

You access the lifting platform on a ramps that is manually adjustable - an electric adjustment system is available as an option. Bellows on all four sides of the LIFTBOY protect against getting trapped under the lifting platform.

Do you have questions? We're here to help.

0 800 / 85 85 55

Request now without obligation

Available in 3 versions (LIFTBOY 1, LIFTBOY 2, LIFTBOY 5)

Thanks to their light weight, the LIFTBOY I and LIFTBOY II versions can also be implemented as mobile lifting platforms with removable transport wheels and, when used in this way, do not need to be fixed at the installation site. A 24 V motor, which is connected to a power socket by a transformer, raises and lowers the LIFTBOY quietly.

A handrail on the platform is used to secure the upper stop. The longitudinal sides are fitted with a safety edge and a 40 cm high railing.

More equipment features

Extremely flexible

Slot-on wheels enable easy transport.

Easy to operate

Simple operation by means of a hand-held controller or free-standing control column.

To meet customer requirements

Depending on the on-site situation, the entrance and exit can also be installed on the side.

Technical data

Maximum vertical travel:      595 mm
Maximum load capacity:       180 kg
Lifting speed:                          10 mm/s
Weight of unit:                        53 kg
Dimensions (L x W):             810 mm x 1180 mm

Maximum vertical travel:      830 mm
Maximum load capacity:       300 kg
Lifting speed:                          10 mm/s
Weight of unit:                        95 kg
Dimensions (L x W):             924 mm x 1505 mm

Maximum vertical travel:      1300 mm
Maximum load capacity:       300 kg
Lifting speed:                          25 mm/s
Weight of unit:                       232 kg
Dimensions (L x W):            1100 mm x 1400 mm

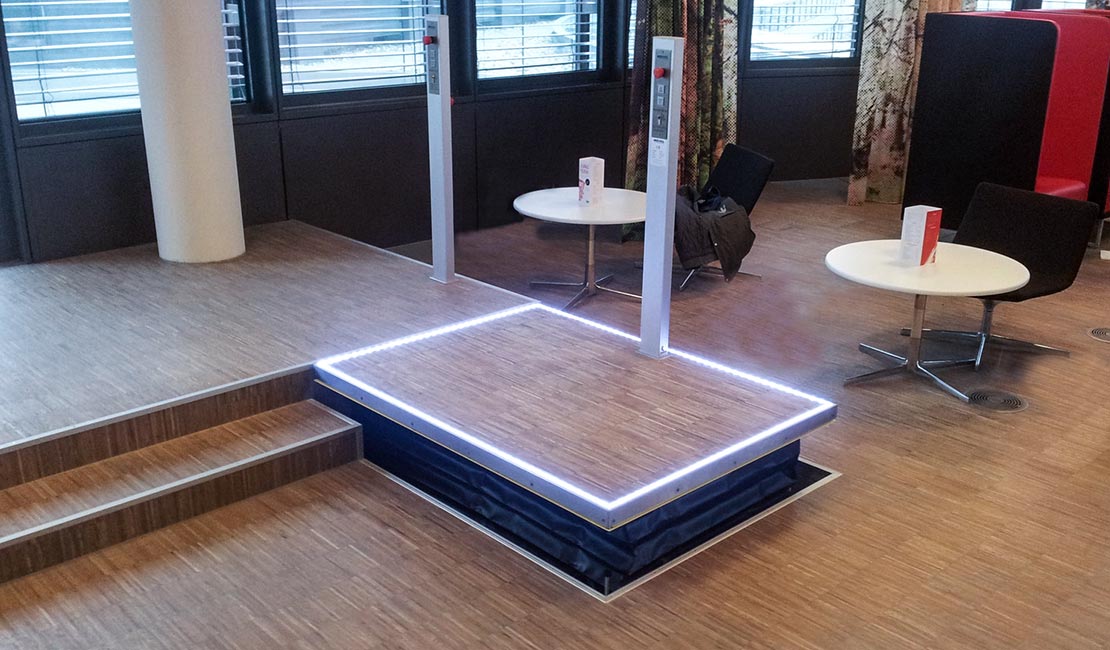

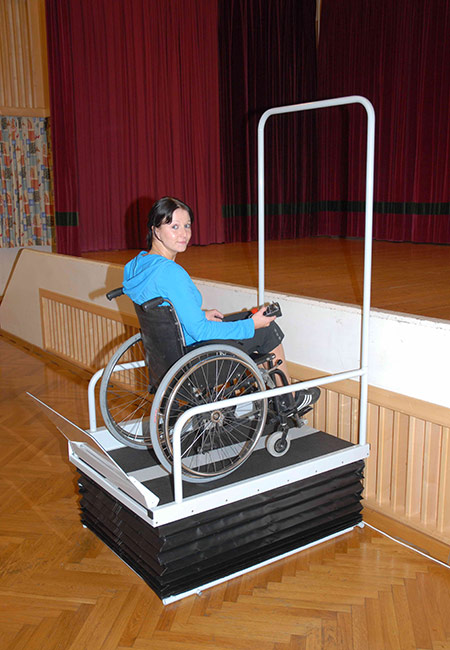

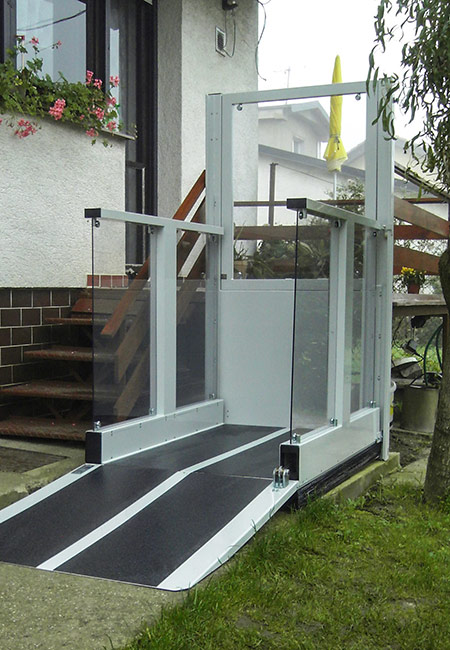

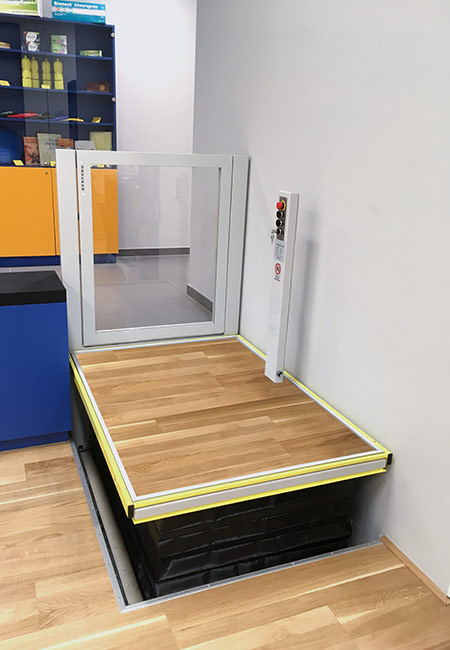

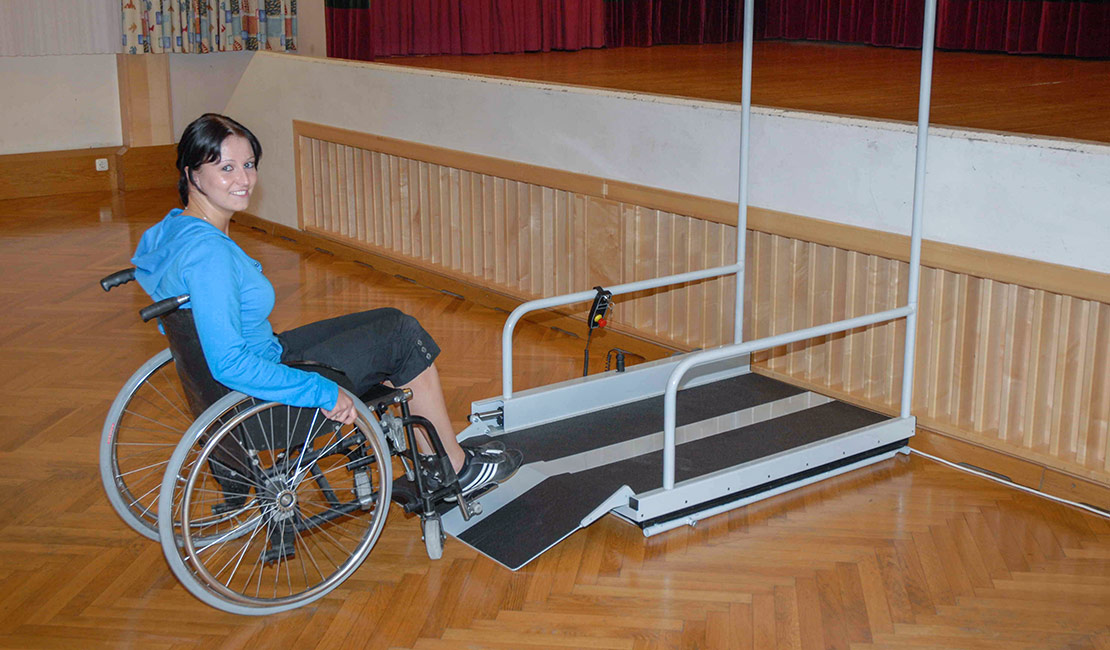

Applications & impressions
